ABGateway

ABGateway can communicate with the following Allen-Bradley PLCs

• PLC5 Family
• SLC 500 Family
• Control Logix

ABGateway can access any data table in the memory of these PLCs. It is not designed to access the program files or edit the program files.

ABGateway can use the following interfaces to communicate to the Allen-Bradley PLCs

• Serial DF1 full Duplex ----- A USB to serial converter is required
• Ethernet Direct to PLCs with an Ethernet port
• Ethernet to a pyramid integrator then to a data highway Plus network of PLCs
• Ethernet to a Control Logix Gateway then to a data highway Plus network of PLCs
• Ethernet to a Control Logix rack and then access tags directly

Once ABGateway is configured to talk to your PLCs you can:-

• View data table values with the inbuilt data table monitor.
• Use applescript to read and write values from PLC data tables. You can for example read some data table values and put them into an Excel spreadsheet for display or reporting.
• Use your own application to access the PLC data tables.
• Use Consultant ---- Control Plus SCADA program for the Macintosh.

Who needs ABGateway?

• Anyone who would like to read values from an Allen-Bradley PLC and would like to do it on Mac OSX.

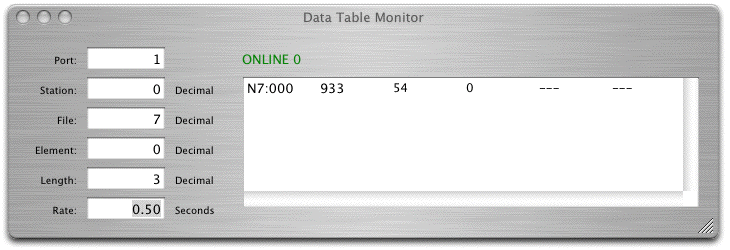

		Use the builtin data monitor window to view data table values from your PLC

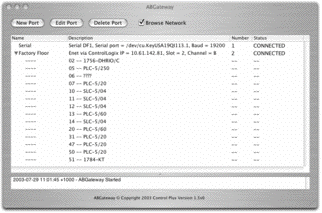

		Use the browse network feature to see what PLCs are online

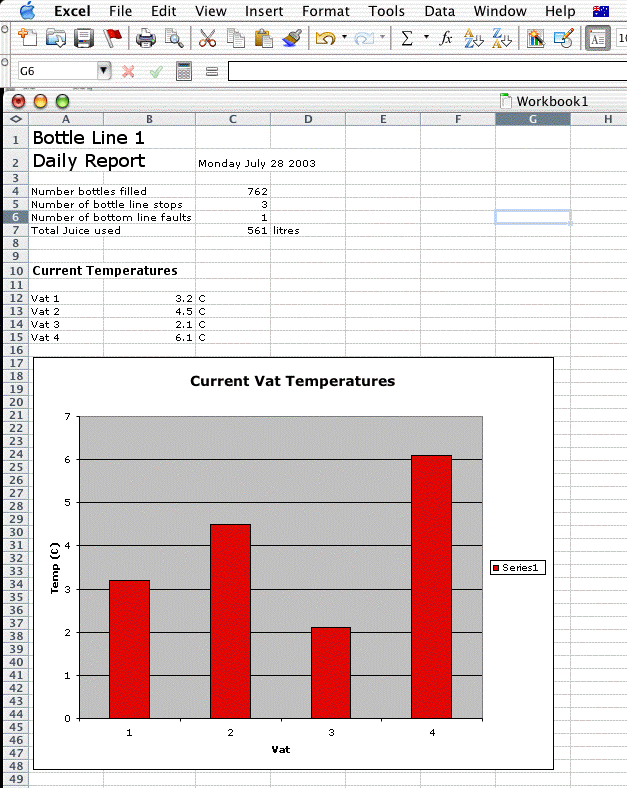

		Use applescript and excel to display datatable values. The vat temperatures have been read from the data table of a PLC

Download ABGateway Demo (1Mb)
